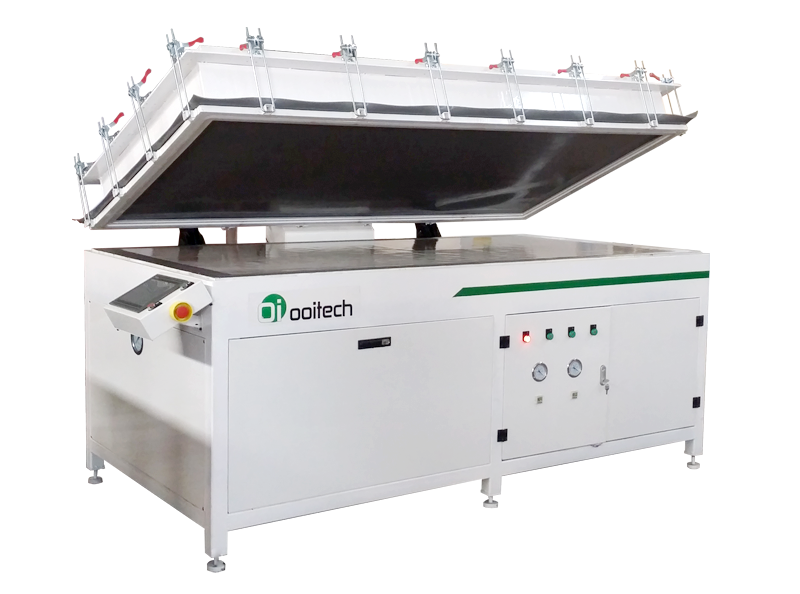

Semi-Auto Solar Panel Laminator

Machine Function

Semi-auto solar panel laminator is the most important process in the solar panel production line.

It used to bond multiple layers of materials (EVA, Glass, Backsheet, Solar cell) together by heating vacuum in laminator chamber.

Machine Features

1. Intelligent  temperature control system,

Make the temperature more uniform and more easily set and control the temperature.

2.Laminating pressure adjustable

Can adjust the pressure accord to the production process requirement, makes good quality solar panel.

3. 24 hours continuous working in high temperature.

4. The advanced touch screen operation panel

Easy operation,  quickly respond, more stable performance and reduce tfailure rate.

5. Humanity system operation process

The equipment is equipped with many detection switches. In normal production, operators will only be required to put the modules on the heating platform and press the cover switch.

The equipment will be automatically laminating, cure and open cover automatically and wait for operator to start the next procedure.

Technical Parameters

Parameter

Laminated   Size

Machine   Size
  (MM)

NW

(T)

Power   (KW)

Pump

Annual   Output

Model

Max

Working

Speed

OCY2211

2200×1100

2560×1460×1270

3.2

27

4.4-17.3

30 L/S

2.4MW

OCY2222

2200×2200

2560×2830×1270

4.8

33

6~19

30 L/S

4.8MW

Heating Mode

Oil Heating

Power Supply

AC380V  Triphase five Wires

Control mode:

manual/ automatic

Working Vacuum

100mpa

Laminating Time

6-8mins   (excluding curing time)

Temperature Control

Intelligent PID Temperature Control

Temperature Precision

±2

Environmental Temperature

0-50

Temperature Range

30-180

Temperature Uniformity

±2

Module Height

25mm

Air Supply required

0.6-0.8MPa

Vacuuming time

2-6Min

Compressed air flow required

50L/Min

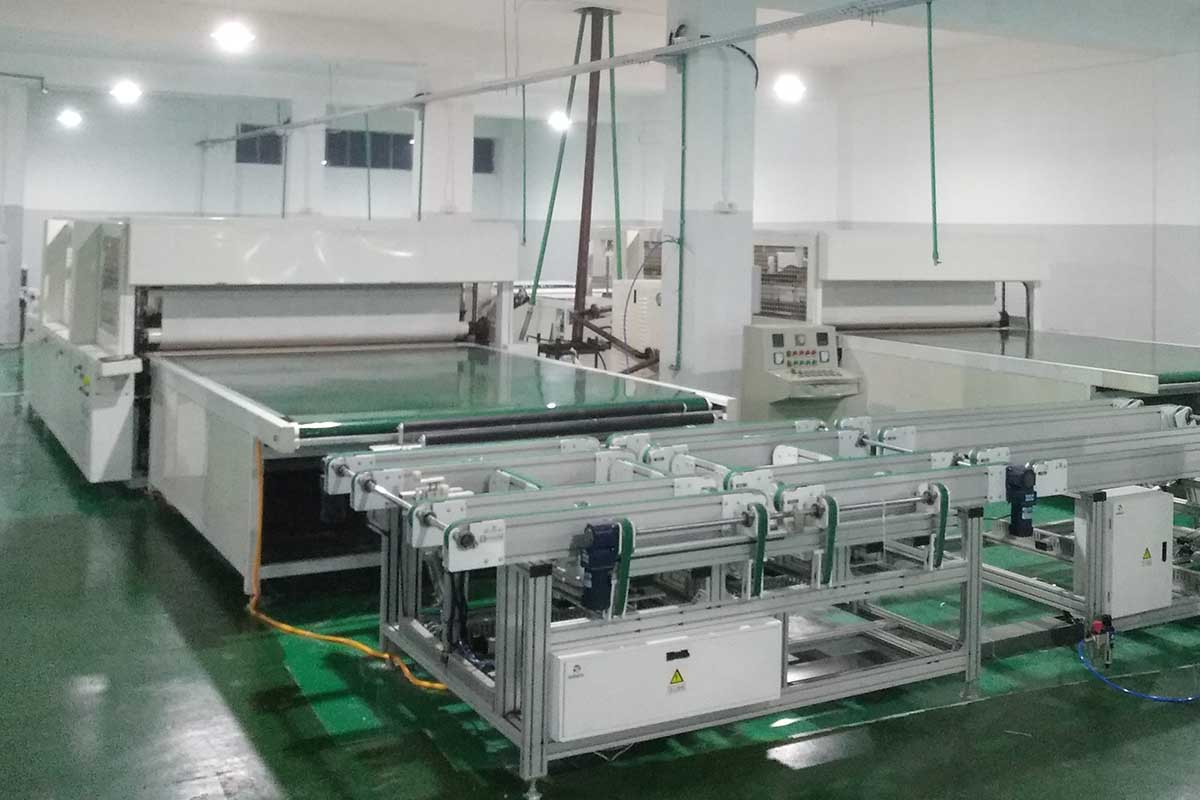

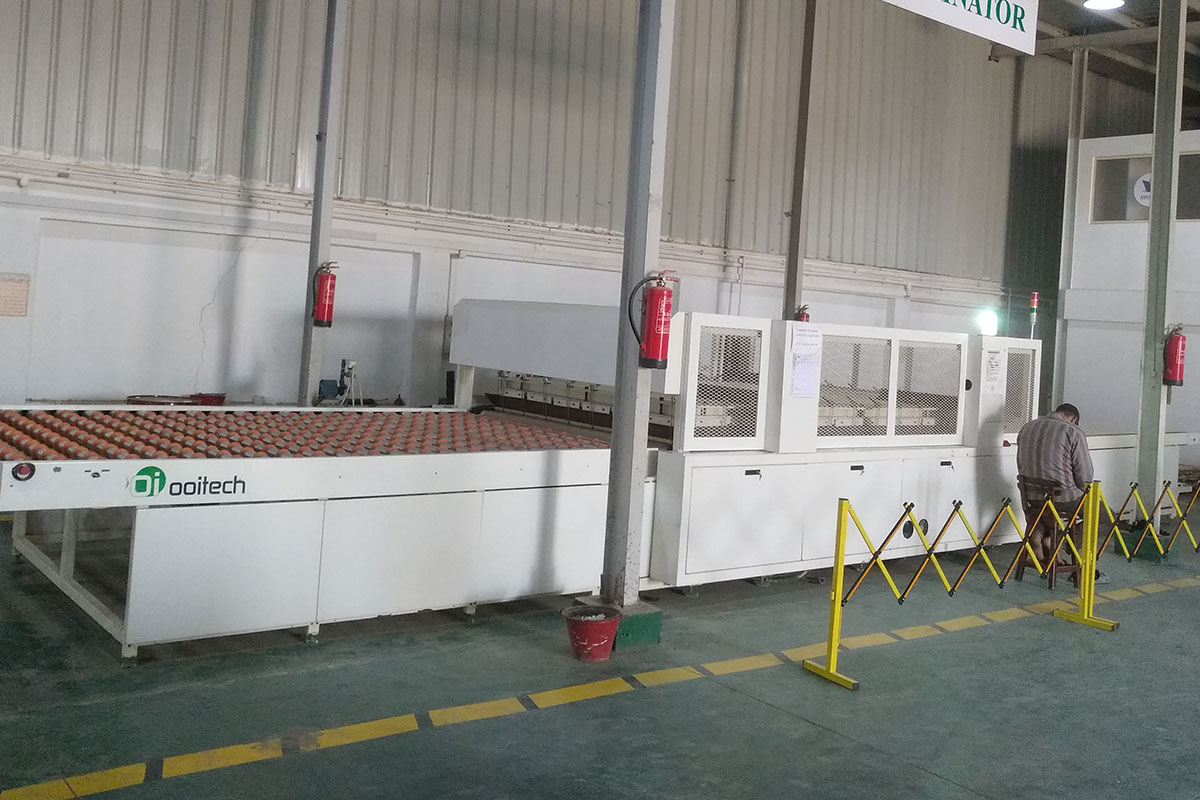

Detail picture

Solar Panel Laminator

About US

Ooitech, One-stop Solution For Solar Panel Making Machines. Has The Following Required Machinery And Accessories

Solar Panel Making Machines

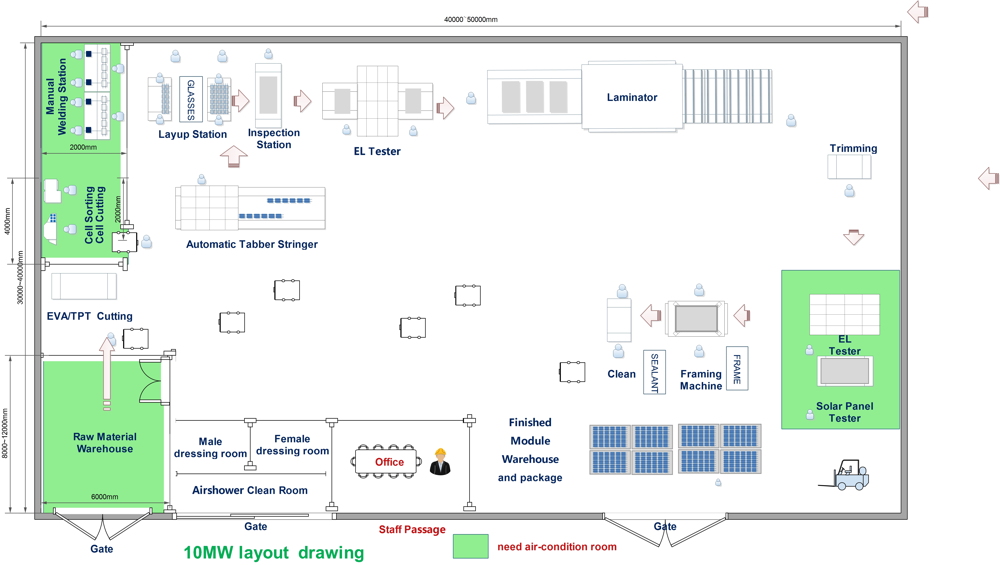

Ooitech “Turnkey Solution” Includes Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assistance, Solar Power Station installation technical support Etc.


Ooitech focus on:

Supply 10MW-500MW Turnkey Solar Panel Making Machines

Update the traditional PV line to the newest MBB solar panel making machines.

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High-Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine
