• Solar Panel Aluminum Framing Machine

Solar Panel Aluminum Framing Machine

Solar panel aluminum framing machine is used to install the aluminum frame and automatically overflow glue.

WhatsApp :

Inquiry Now!

Solar Panel Aluminum Framing Machine

Machine Function:

Used to install the aluminum frame and automatically overflow glue.

Technical Parameter

Name

Solar Panel Aluminum Framing Machine

Model

OTZK-A

Machine   Function

online gluing and framing

Applicable   Panel Size

Maximum Panel size 2500×1400×3050mm

Minimum   Panel size1580×808×3050mm

Machine   efficiency

Working time≤35sec

Technical   Process

After automatic framing, Input and Output of   panel will be circulating in order

Working   Voltage(V/Hz)

220

Working   Speed

1   panel/(35sec)

Working   Table Height (mm)

950±50

Stress(MPa)

0.6-0.7MPa

Air   Consumption(L/min)

300

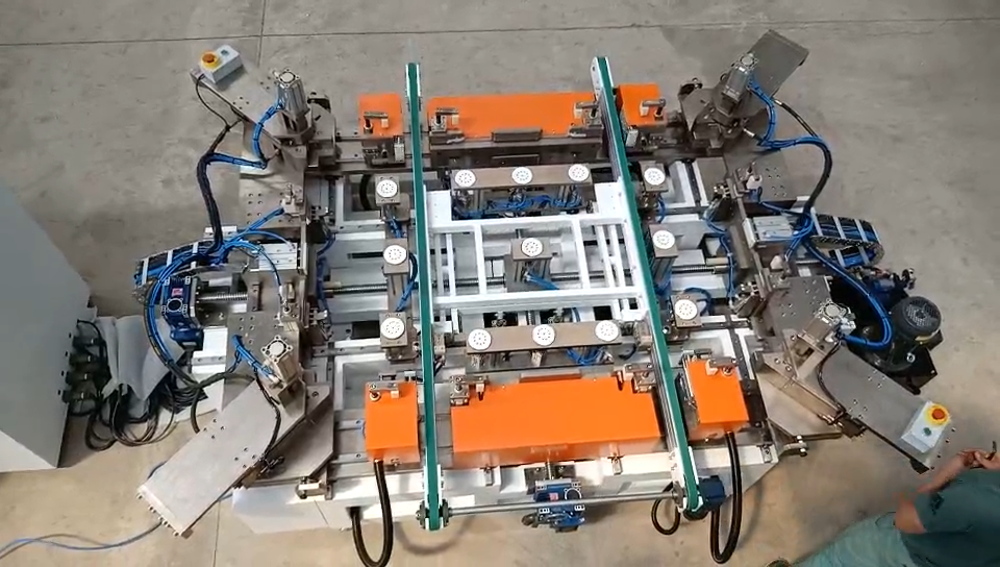

Detail picture

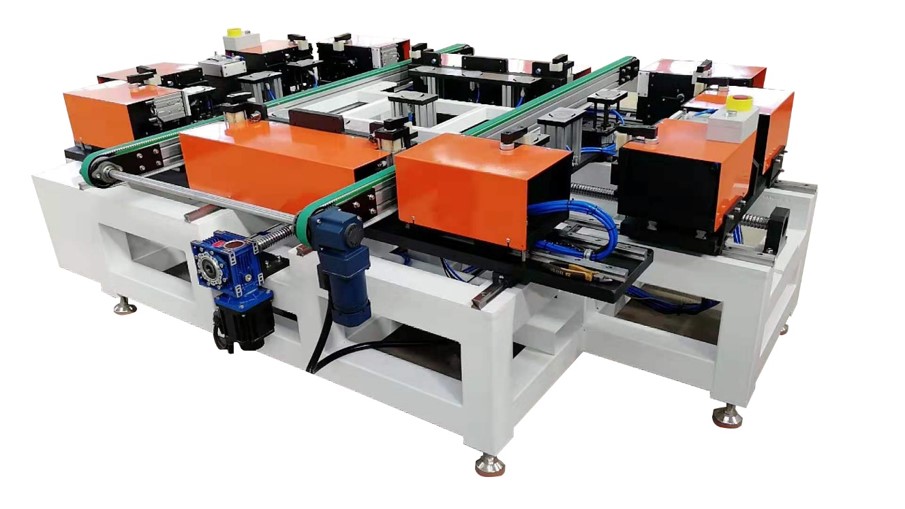

Solar Panel Aluminum Framing Machine

About US

Has The Following Required Machinery And Accessories

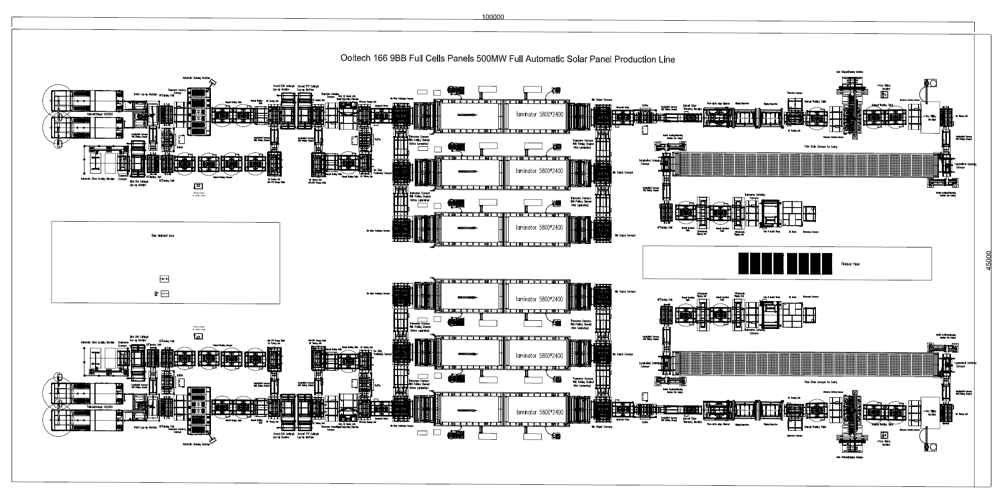

solar panel production line

Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assistance, Solar Power Station installation technical support Etc.

Ooitech focus on:

Supply 10MW-500MW Turnkey Solar Panel Production Line

Update the traditional PV line to the newest MBB solar panel production line.

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High-Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine

Views: 3663 Update: 2022-06-27
