Solar Cell Tester Solar Cell Sun Simulator Cell IV Tester
Machine Function
Solar cell sun simulator is used to test the electrical performance of Mono-Si or Poly-Si solar cell pieces and record the results in files.
Technical Parameter
MODEL | OSCT-A | OSCT-B |
Lamp spectrum | In line with iec60904-9 spectral Irradiance distribution requirement(AM1.5) |
Light intensity | 700-1200W/Mm2 continuous adjustable range |
Light intensity non-uniformity | ≤±2% 【A】 | ≤±3% |
Light intensity instability degree of irradiation(STI) | ≤±0.5% 【A】 | ≤±2% 【A】 |
Light intensity instability degree of irradiation(LTI) | ≤±2% | ≤±2% |
Test results consistency | ≤±0.5%【A】 | ≤±1% |
Single flash time | 10ms | 10ms |
Effective test range | 200×200mm /0.1W-5W |
Measuring voltage | 0-0.8V(resolution 1mV) |
Measuring current | 0-20A(resolution 1mA) |
Test parameters | Isc、Voc、Pmax、Vm、Im FF、EFF、Temp、Rs、Rsh |
Power supply | AC220V/50HZ/2KVA |
Air supply | 0.5-0.8Mpa |
Weight | 160KGS | 140KGS |
Machine Dimension | 800*600*1750mm | 800*600*1850mm |

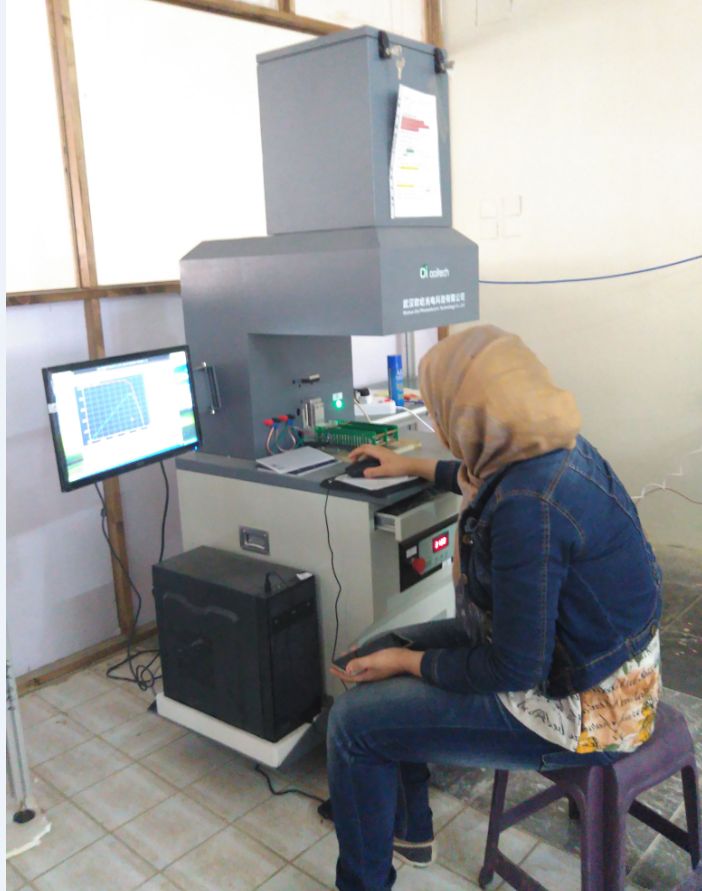

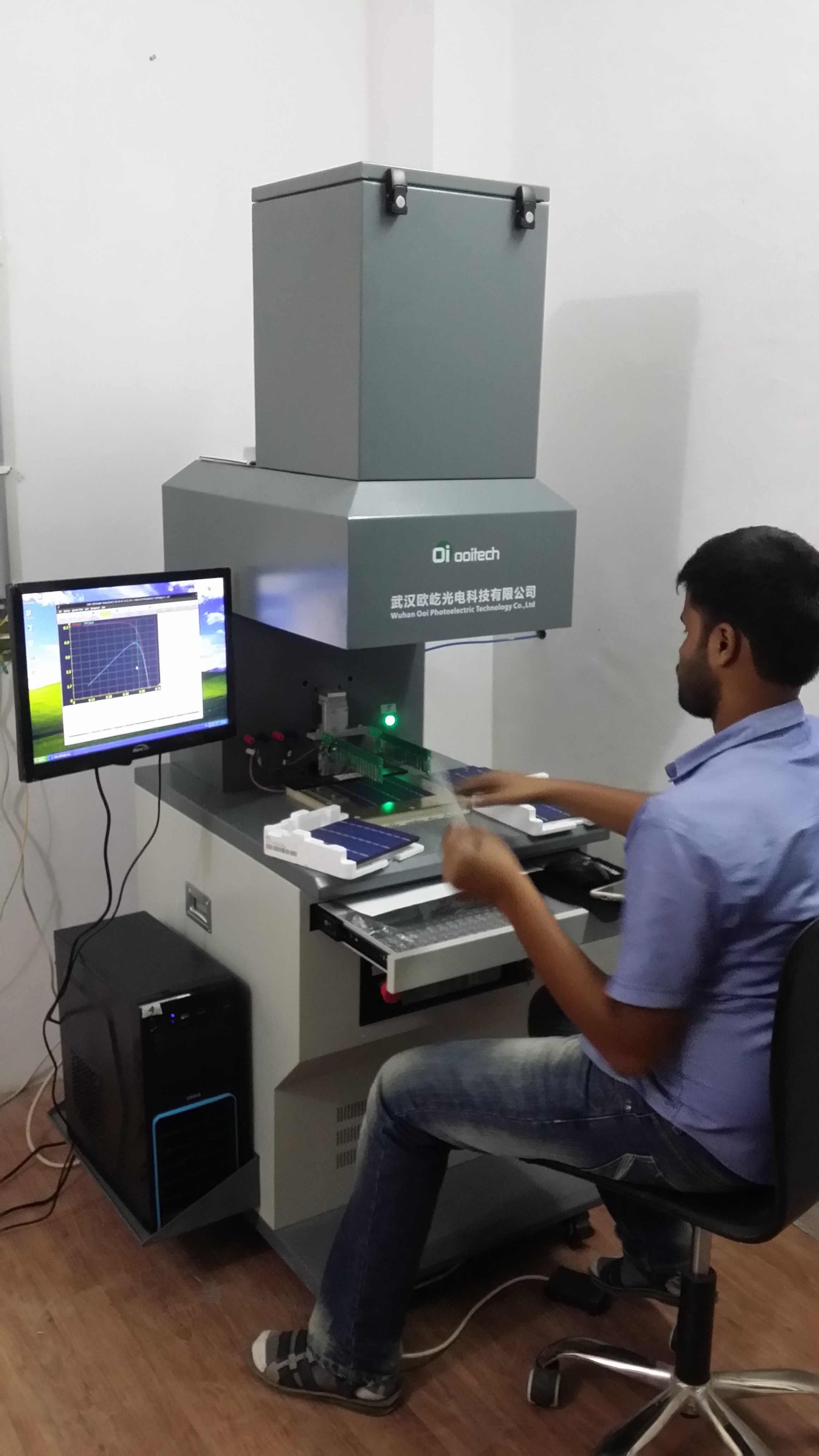

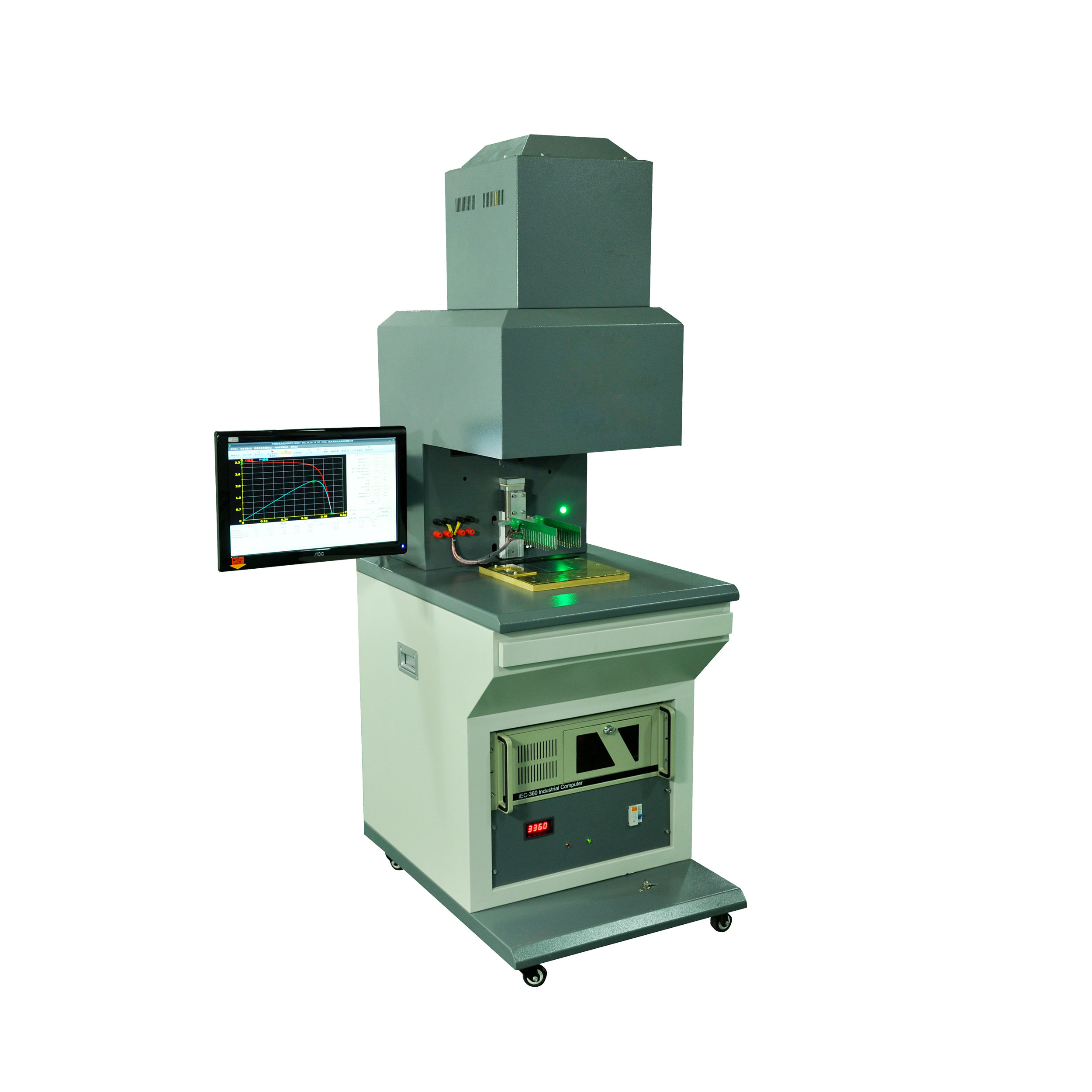

Detail picture
About US
Ooitech, One-stop Solution For Solar Panels Manufacturing Equipment.
Has The Following Required Machinery And Accessories
Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assitance, Solar Power Station installation technical support Etc.
Ooitech focus on:

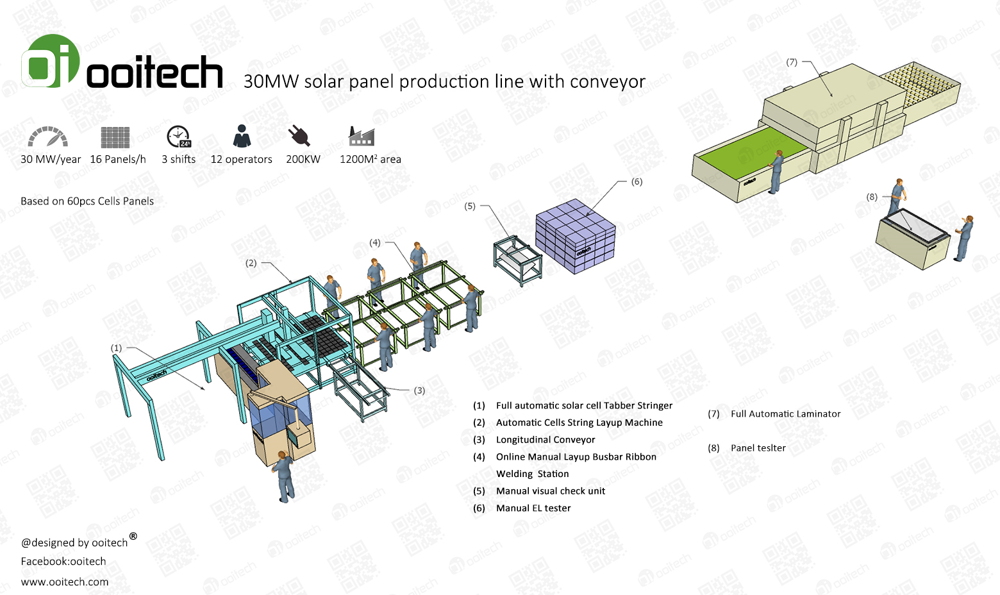

Supply 10MW-500MW Turnkey PV Production Line
