158 210 Solar Cell No-Water Non-Destructive Laser Cutting Machine

Advantage:1.Damage-free cutting

2.Waterless

3.Low power consumption

4.High compatibility

5.Maintenance-free

6.High productivity

7.Low cost of use

8.Low fragmentation rate

9.High straightness

WhatsApp :

Inquiry Now!

158 210 Solar Cell No-Water Non-Destructive Laser Cutting Machine

Machine Function

Solar Cell No-Water Non-Destructive Laser Cutting Machine cuts solar cell into half piece or 1/3 piece,which can increase the output of the solar panel power.

Technical Parameter

Classify

Item

Technical index

Remarks

Equipment

performance

Applicable

solar cells

Cell Type

Bifacial Mono Solar  size:156-220mm

Half Cut

reserve the space to update   1/3 1/4;

less than half-hour to switch different

sizes solar cells

Cell thickness

100-200μm

Maximum thickness deviation

of one batch of cells <20μm

Cell Grid line layout

The cutting area of both the  front or

backside of the cells, must have blank area with width ≥1.5mm

(no thick or thin silver   grid line)

Cell warpage

<2mm

A, B grade cell

Maximum capacity

(SL5-UD3600)

3600pcs/h (full cell)

calculate as 166 perc solar   cell

Maximum capacity

(SL5-UD7000)

7000pcs/h (full cell)

Equipment utilization

≥99%

failure rate ≤1%

Fragmentation rate

≤0.05%

Including fragments, missing   corners,

chipped edges and other poor appearance

Equipment operation

Touch screen + regular   operation buttons

+ external wireless keyboard and mouse

Process index

Heat affected zone

No


Comprehensive cutting   accuracy

Centering accuracy ±0.05mm


Laser index

Slotting laser

50W

SPI/IPG

Splitting laser

200W

Behring (Delphilaser own   brand)

Laser wavelength

1064nm


cooling method

Natural cooling


Laser lifetime

30,000 hours


Laser protection

Level 4 safety protection

Safety light curtains+optical sealed box

+Safety door+Protective glasses

Camera

Camera

High-resolution industrial   camera

20 million pixels,   positioning accuracy ≤±0.05mm

Camera light source

Upper light source + lower   backlight


Loading detect

Detect the cell chipped edge corner chip

Take away NG cells

Unloading detect optional

The chipped edges, corner   chip,

offset of cutting line


Automatic

process

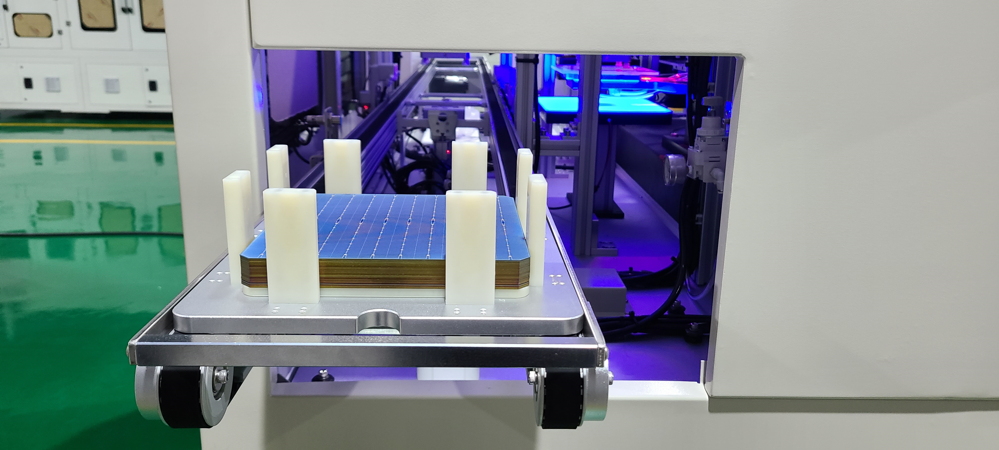

automatic loading

Manipulator

8 feeding boxes,

120 Cells/ boxes

Automatic unloading

Belt + manipulator

Standard unloading box

Splitting ways

Laser

Automatic split

upgrade

MES window

Reserve MES window

Support multiple data output

Advantage

1.Damage-free cutting

2.Waterless

3.Low power consumption

4.High compatibility

5.Maintenance-free

6.High productivity

7.Low cost of use

8.Low fragmentation rate

9.High straightness

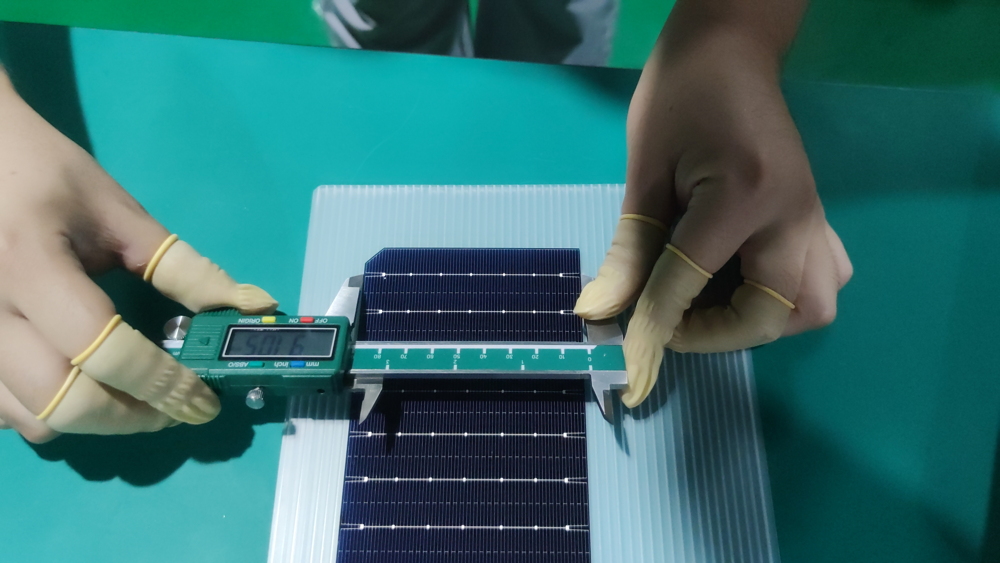

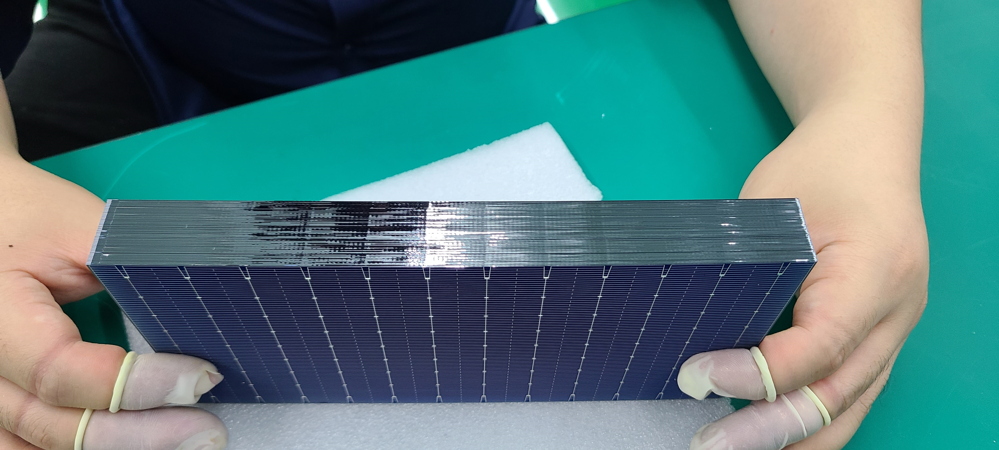

Detail picture

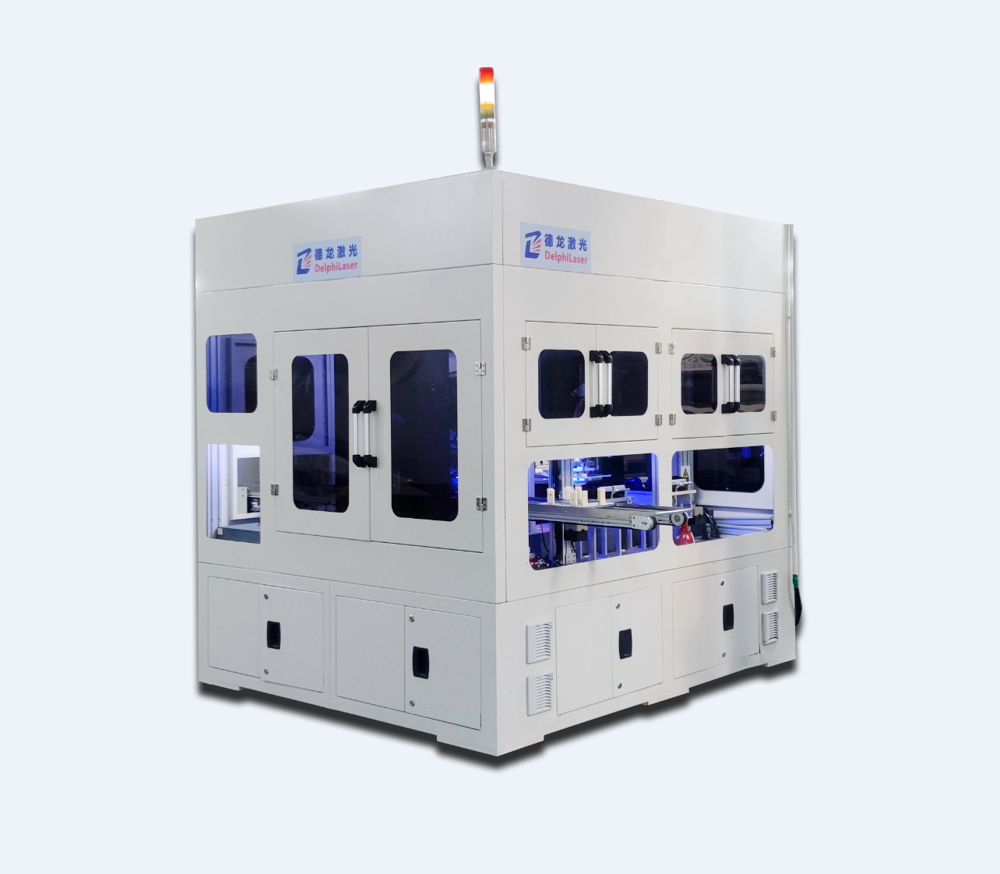

Solar Cell No-Water Non-Destructive Laser Cutting Machine

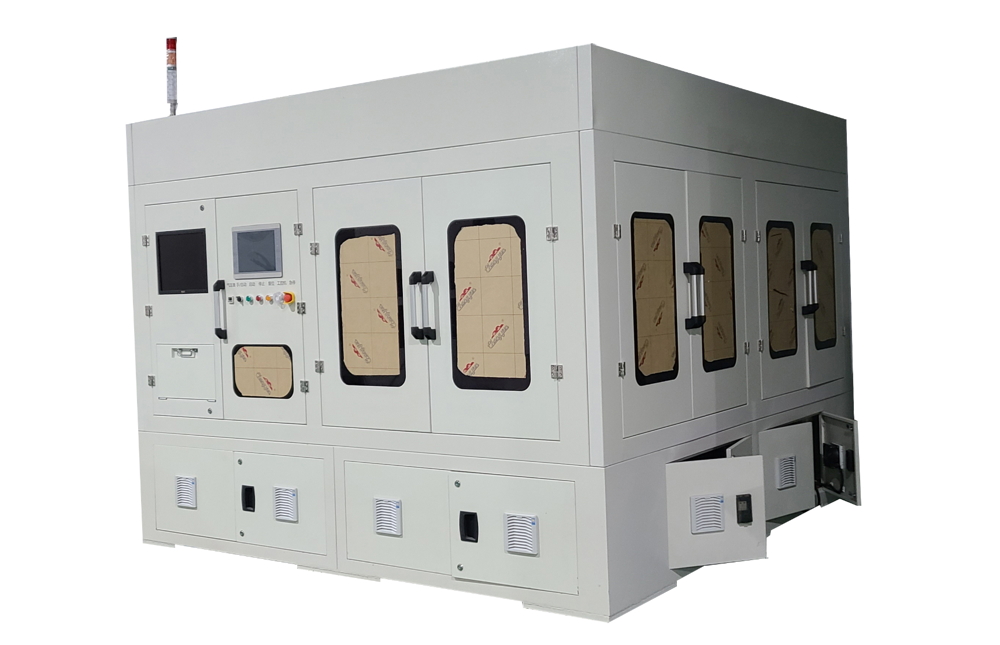

Solar Cell Non-Destructive Laser Cutting Machine

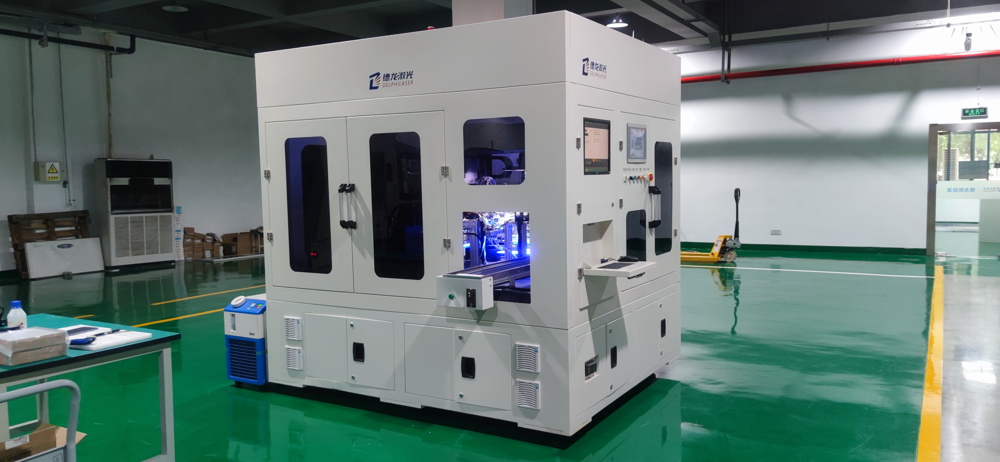

PV Line Non-Destructive Cutting Machin

About US

Ooitech, One-stop solution for manufacturing solar panels. Has the following required machinery and accessories



manufacturing solar panels


Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assistance, Solar Power Station installation technical support Etc.


Ooitech focus on:

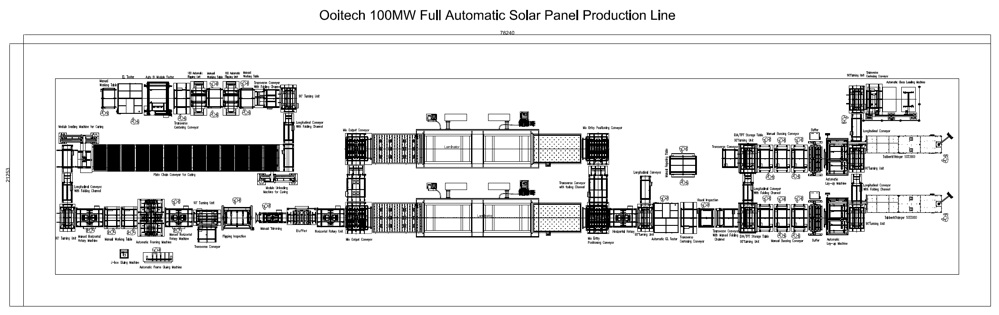

Supply 10MW-500MW Turnkey PV Production Line
