156-210 MBB 50-60 S/Panel Pv Line Auto Solar Strings Welding Bussing Machine

Pv Cell String Interconnection adopt the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It ha

WhatsApp :

Inquiry Now!

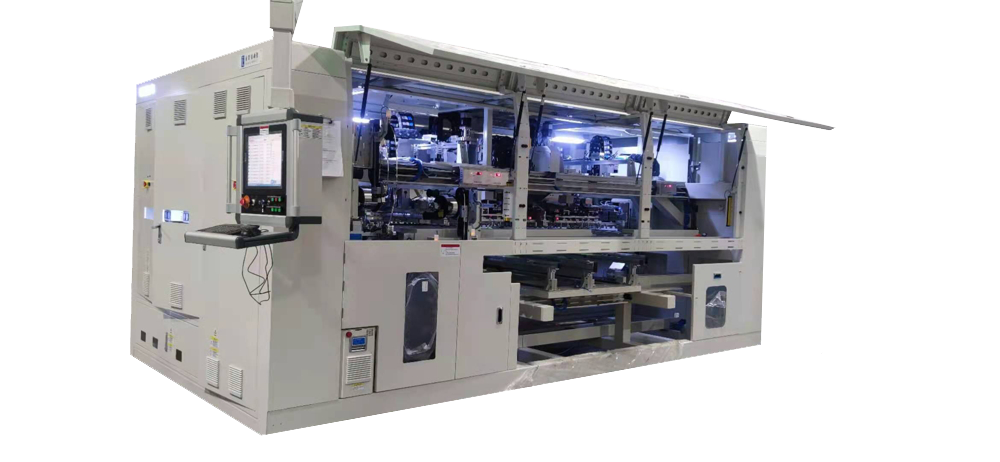

156-210 MBB 50-60 S/Panel Pv Line Auto Solar Strings Welding Bussing Machine

Machine Function

Adopt the method of separating the cell string from the glass, and grab the cell string in the air, then to interconnected solder the head, middle and tail bus bar of the middle wire edition module at a certain height; It has the function of a roll feeding bus bar, bending U and L leads upwards.

Technical Parameter

MODEL

ODH180-S

Cell specification

166/9BB main busbar distance   16.79mm (other cell is optional, which can be upgraded upon payment.)

Module specification

6 strings*10pcs half cell*2

6 strings*12pcs half cell*2

cell distance-0.5--4mm,   string distance 1-6mm.

Glass specification

width 980-1400 *length   1630-2500

Cycle

20S (exchange cycle of the   transmission glass is 4.5s/module,  thickness of the bus bar 0.35mm)

Soldering method

electromagnetic

Fragment rate

0.2 (as per pcs)

Pressure

0.6—0.8MPa

Flow rate

2 m³/min

Main pipe specifications

outer diameter φ16 (2   pieces)

Voltage

Three-phase five-wire   380V/220V

Frequency

50-60Hz

Power

Peak 30KW, average 20KW

Size

4805×4620 (including two   pipelines)×2260mm

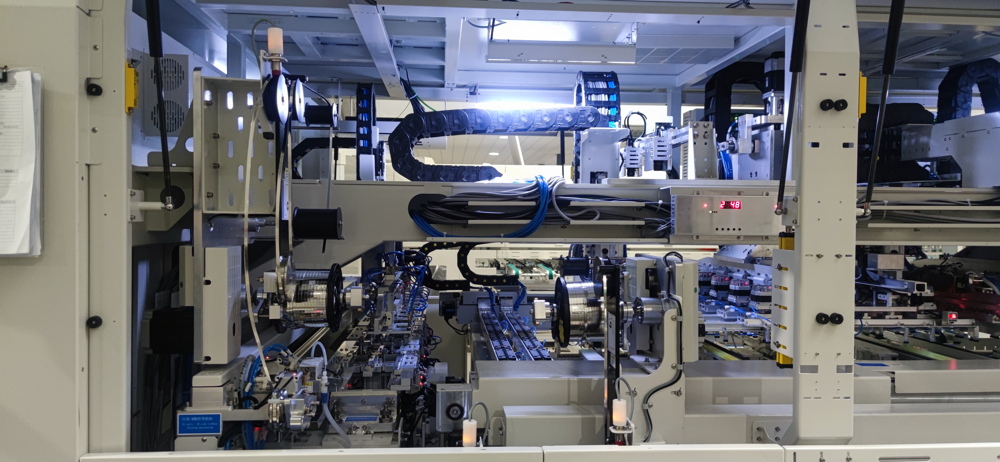

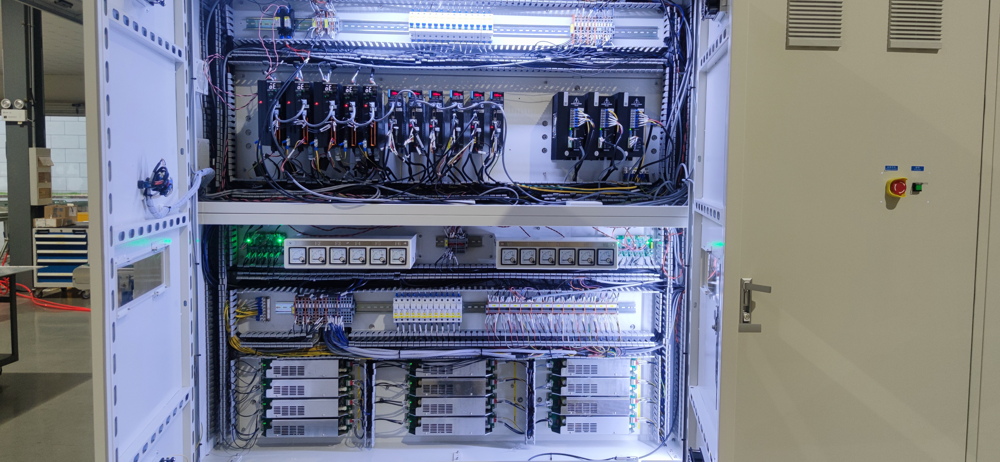

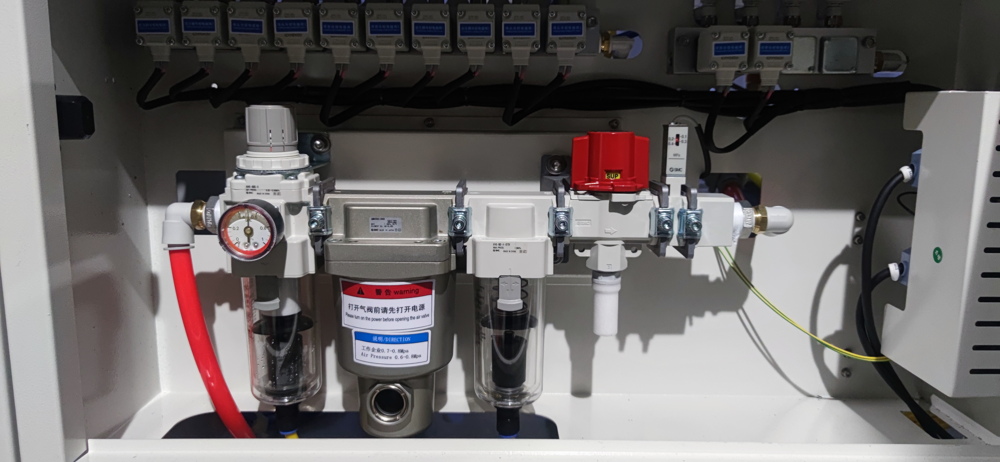

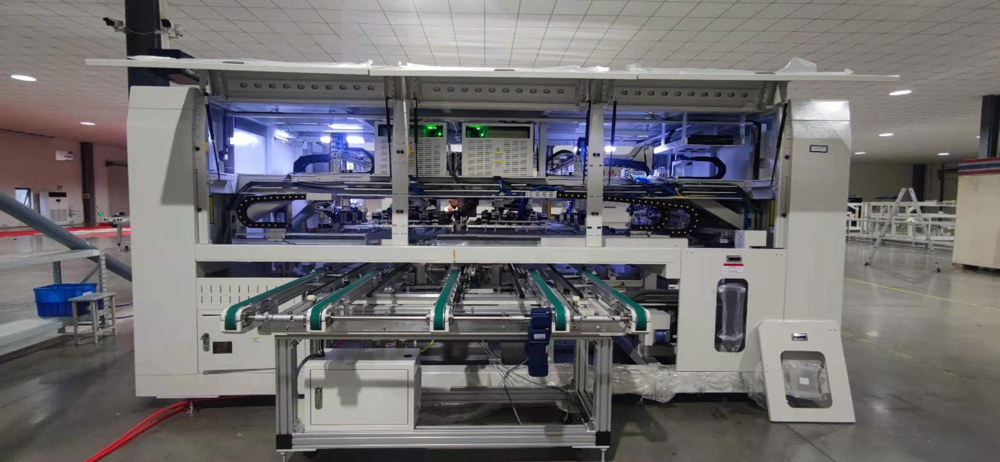

Detail picture

Pv Cell String Interconnection

String Interconnection

Solar Cell Bussing

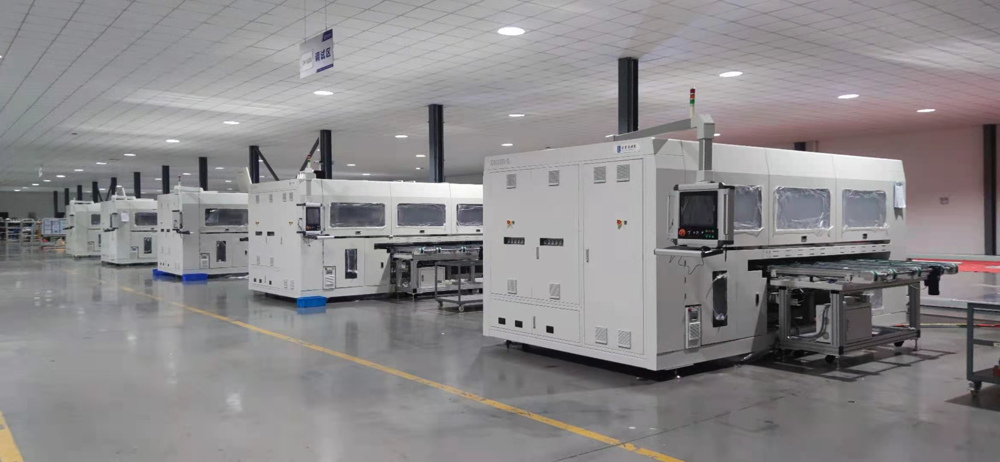

Turnkey PV Lines

About US

Has The Following Required Machinery And Accessories

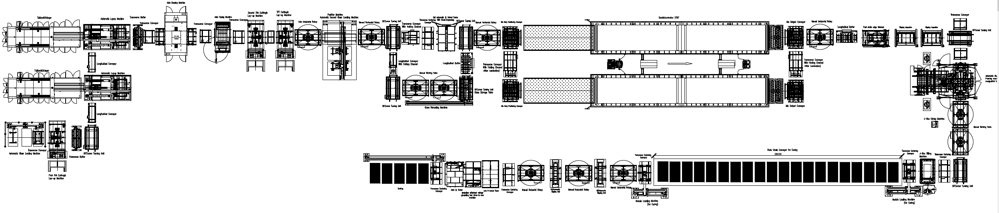

solar module manufacturing line


Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assistance, Solar Power Station installation technical support Etc.

Ooitech focus on:

Supply 10MW-500MW Turnkey PV Production Line

Update the traditional PV line to the newest MBB solar panel production line.

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High-Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine
