PV Cell Stringer Layup Machine with Robot

PV Cell Stringer Layup Machine with Robot is used to achieve solar string automatic laying on glass EVA, and transporting module to the next process.

WhatsApp :

Inquiry Now!

PV Cell Stringer Layup Machine with Robot

Machine Function

PV Cell Stringer Layup Machine with Robot is used to achieve solar string automatic laying on glass EVA, and transporting module to the next process.

Technical Parameter



Specifications

Model

OTHS-PBR

Power supply

AC380V 50Hz

Power

≤10kW

Cycle time

single string≤5s

String arrangement accuracy

±0.3mm

Applicable module specification

2450*1400mm

Air consumption

500L/min

Dimensions(L*W*H)

3200*2800*2200mm





Functionality

Compatibility

Regular 60/72 cells, double glass,   three junction

boxes type and half-cell modules

Operation Mode

One button switch

Noise level

≤60dB

HMI

Chinese/English mode











Feature

Overall Machine

1.      Maximum module specification 2450*1400mm

2.      Compatible with horizontal and vertical types

3.     One button switch

Cell string conveyor

1. conveyor with narrow belt,   avoid misjudging due

to belt dirt

2. Servo drive, indifference docking with   stringer

CCD image system

1.      CCD image calculation

2. Adjust the fixing camera way in   plane motion,

improve higher photo accuracy

3. Camera image part can be drived by   servo

Robot action

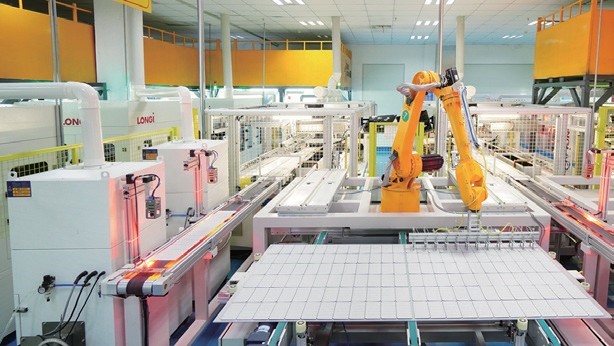

Absorbing string cell directly, saving   time

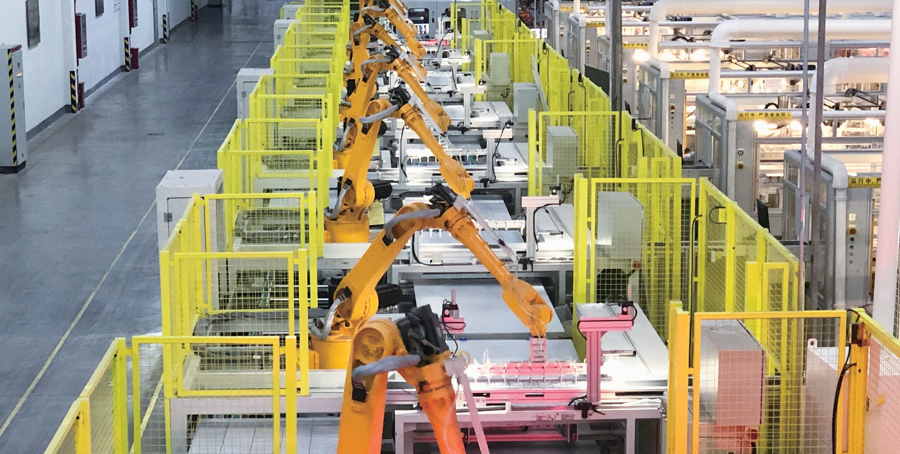

Detail picture

Lay Up Lay Up Machine for Solar Cell Stringer

About US

Ooitech, One-stop Solution For Solar Panel Production Line.

Has The Following Required Machinery And Accessories

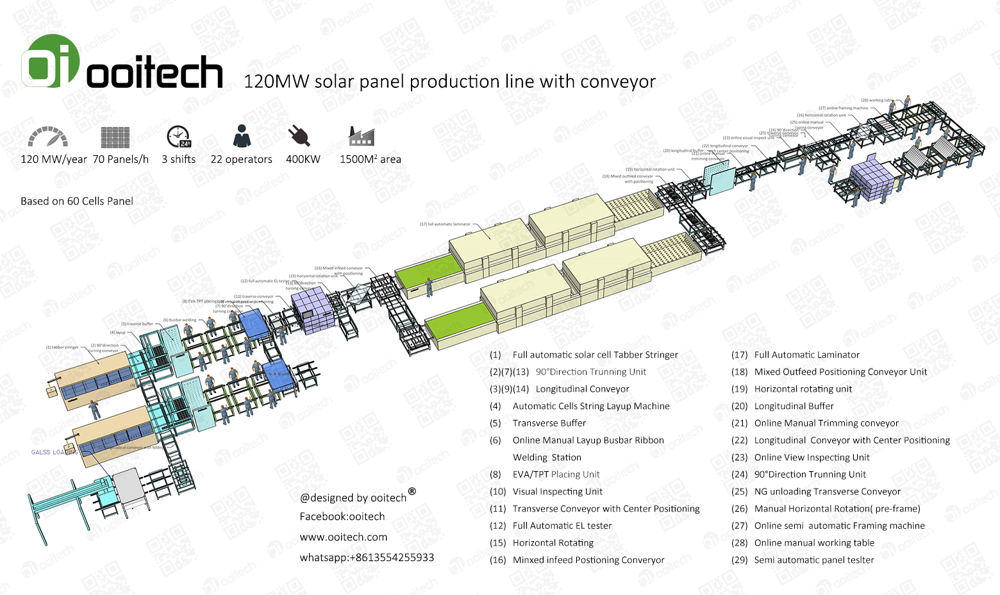

solar panel production line
