• Topcon,HJT,IBC, HBC, SUNPOWER Solar Panel Tester Sun simulator PV Module IV tester

Topcon,HJT,IBC, HBC, SUNPOWER Solar Panel Tester Sun simulator PV Module IV tester

Topcon,HJT,IBC, HBC, SUNPOWER Solar Panel Tester Sun simulator IV tester, A level, is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files.

WhatsApp :

Inquiry Now!

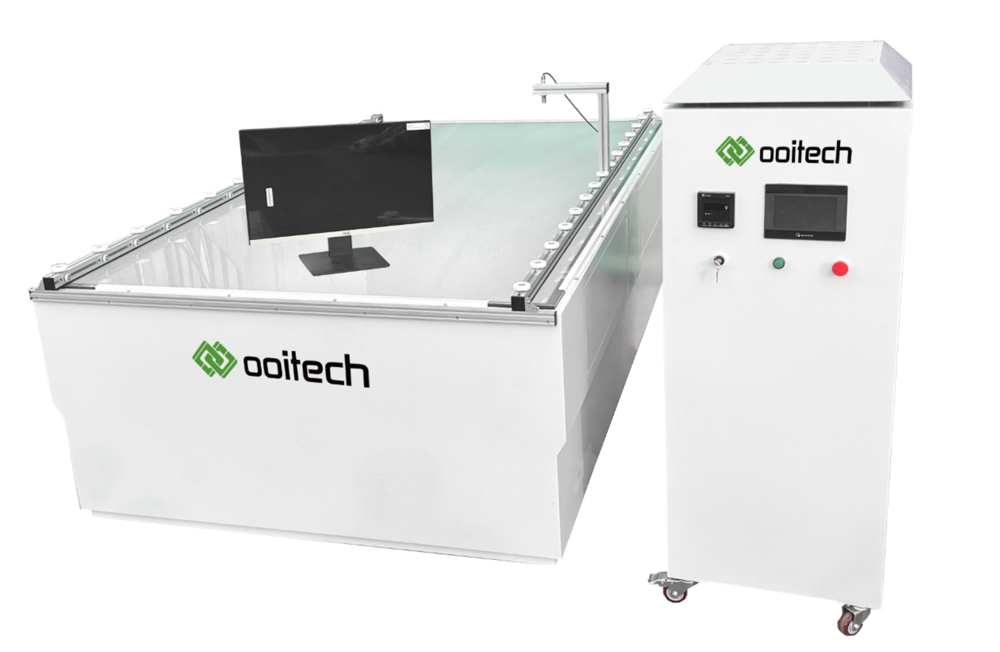

Topcon,HJT,IBC, HBC, SUNPOWER Solar Panel Tester Sun simulator PV Module IV tester

Machine Function

Sun Solar Simulator is used to test the electric performance of Mono-Si or Poly-Si solar modules and record the results in files.


Technical Parameter

MODEL

OTMT-A

Lamp spectrum

In   line with iec60904-9

spectral   Irradiance distribution requirement(AM1.5)

Light intensity

700_1200W/M2    continuous adjustable

Light intensity non-uniformity

≤±1%   A

Light intensity instability degree of irradiation(STI)

≤±1.5%A

Test results consistency

≤±1%A

Single flash time

10ms

60ms

100ms

Effective test range

2600×1500mm

Measuring voltage

0mV-100V(resolution   1mV)

Measuring current

0mA-25A(resolution   1mA)

Power Supply

AC220V/50HZ/1PH

Power

2KW

3KW

3KW

Test parameters

IscVocPmaxVmImFFEFFTempRsRsh

Xenon Lamp service time

300,000flash   times

Weight

400   KGS

420KGS

450KGS

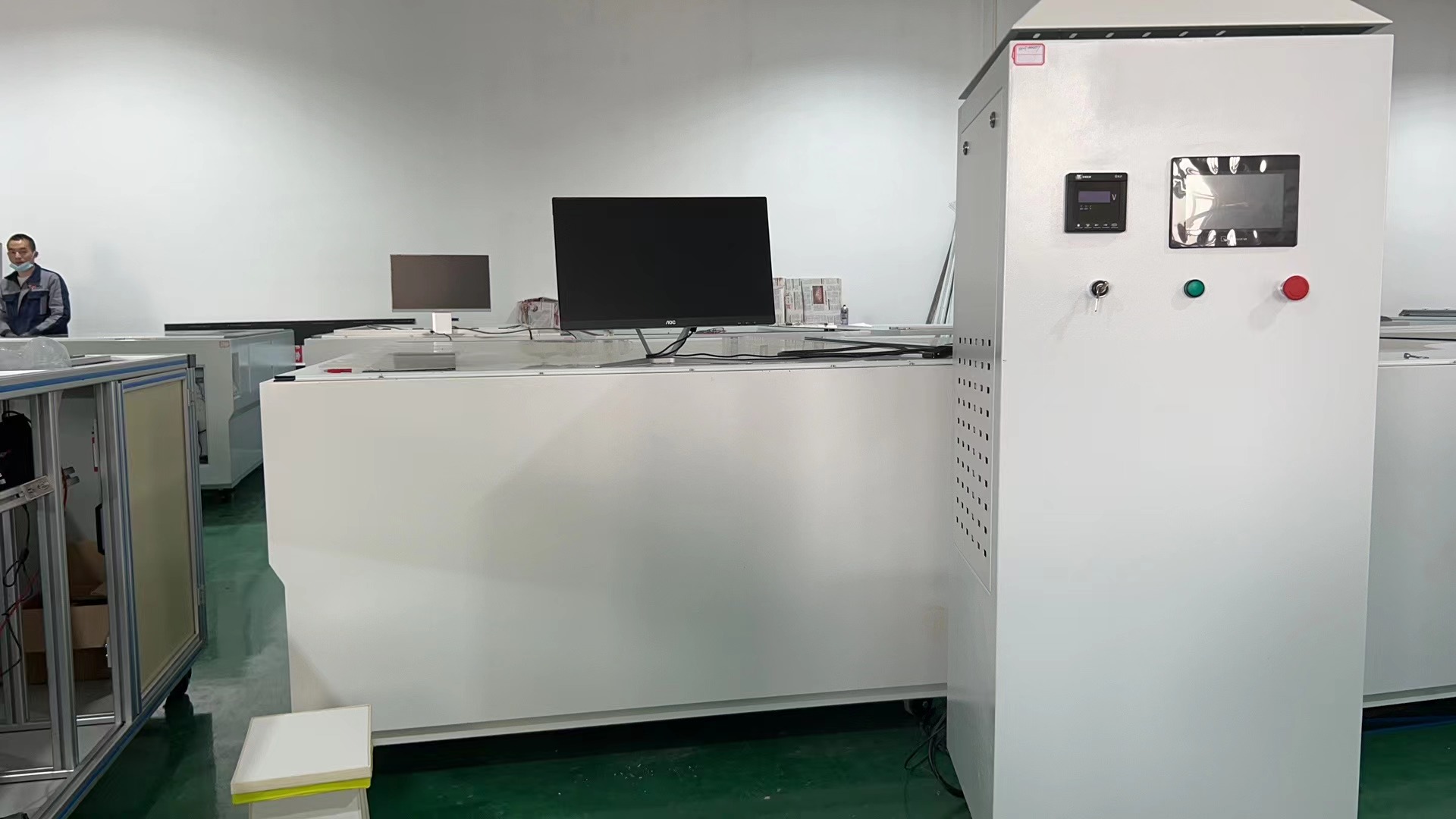

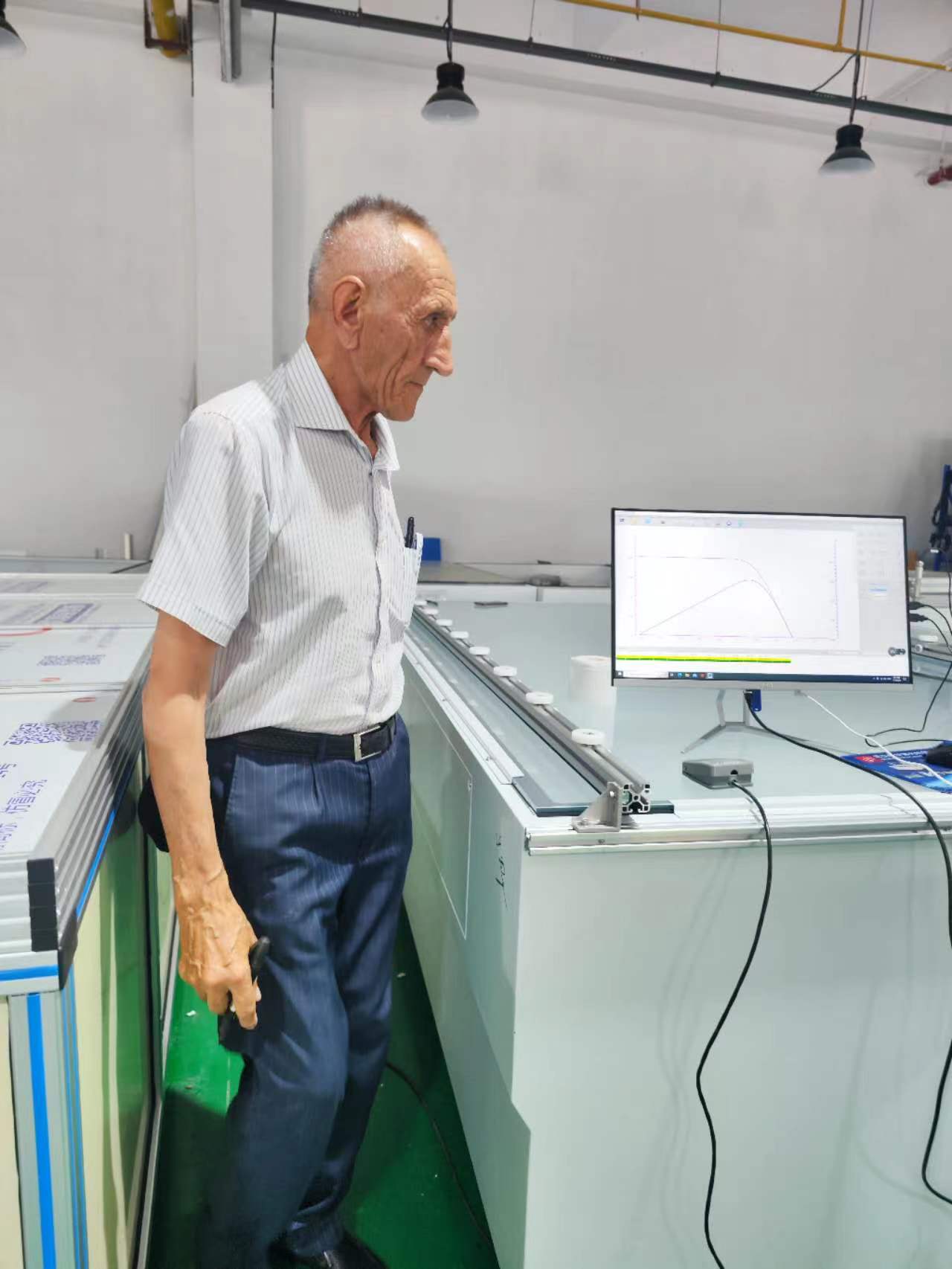

Detail picture




About US

Ooitech, One-stop Solution For Solar Panel Manufacturing Equipment.

Has The Following Required Machinery And Accessories

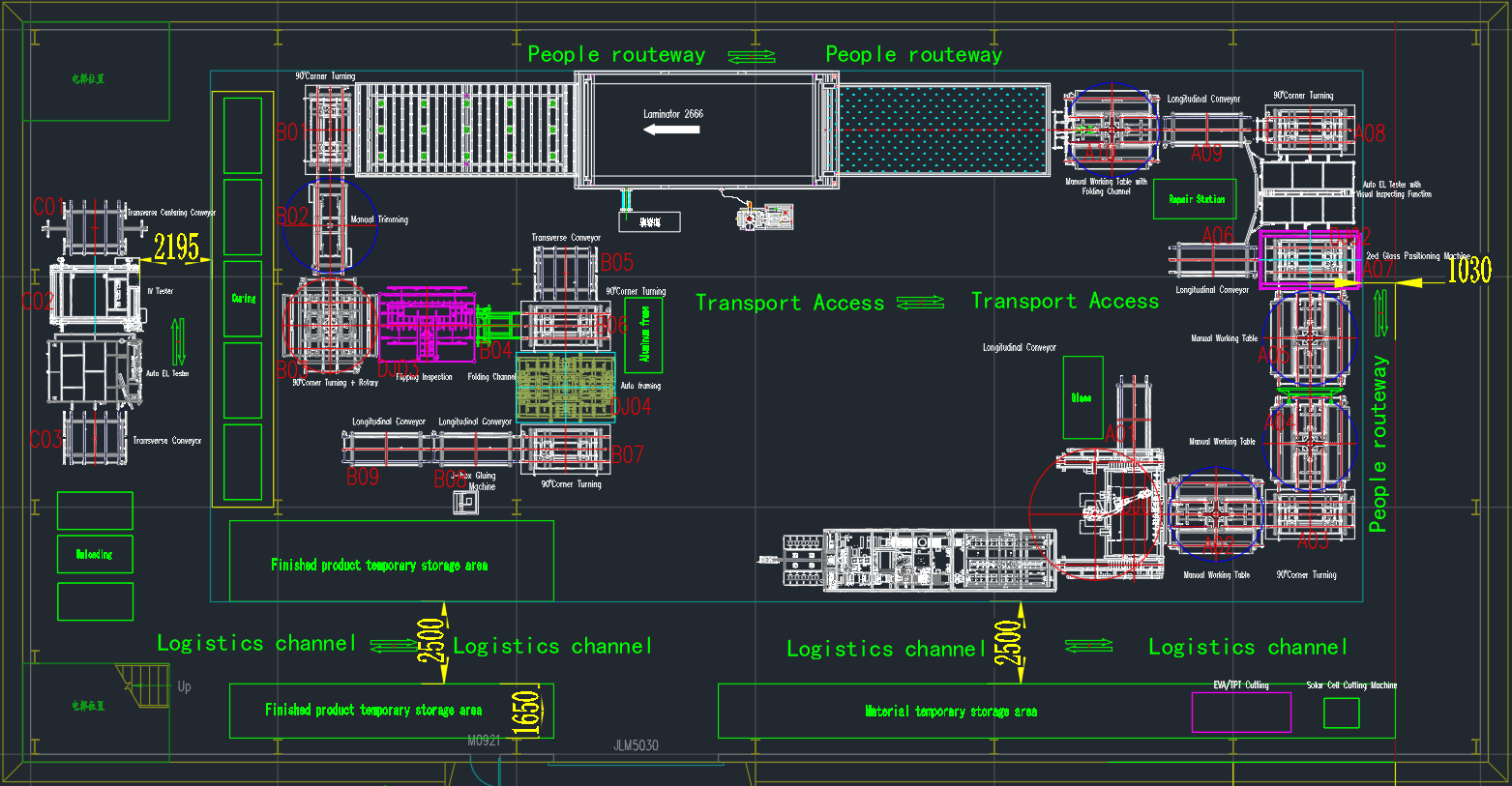

Semi-auto Solar Panel Assembly Production Line


Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assitance, Solar Power Station installation technical support Etc.


Ooitech focus on:

Supply 5MW-30MW Semi Auto Solar Panel Production Line

Update the traditional PV line to newest MBB solar panel production line.

Main machinery

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine

Back Contact Back Contact Cell Welding Machine
