MBB Solar Cell Welding Stringer is a fully automatic machine used to non-destructively cut the mono-Si or poly-Si cells and then solder them into a string.

WhatsApp :

Inquiry Now!

Maximize Your Solar Panel Efficiency with MBB Solar Cell Welding Stringer - Industry-Leading Technology for Precise and Efficient Soldering

Main Function

MBB solar cell welding stringer is a fully automatic machine used to non-destructively cut the mono-Si or poly-Si cells and then solder them into a string. Normally it can work with 156-230mm (3BB-20BB) cells. The cell cut module can cut cells in half, or cut cells into three strips after upgrade. The soldering module can be upgraded for 156-230mm (full, half-cut, 1/3-cut) cells. With the use of PLC, servo, SCARA robot, industrial image processor system and other advanced automation technology, the entire process from cell feed to string outlet is fully automated.

Main Technical Parameters




Item

Specifications



Description

Traditional Cells

MBB Cells
















Basic Information







Uptime







≥95%

(1 - unscheduled downtime/24H), unscheduled downtime refers to   the time when the equipment   malfunctions   or is shut down unexpectedly.













Speed

18Xmm cells: 3BB-12BB   Half-cut≥6800 strips/hour

18Xmm cells: 13BB-20BB

Half-cut≥6000 strips/hour



230mm cells: 3BB-12BB

Half-cut,   1/3-cut  ≥6800 strips/hour   230mm cells: 13BB-20BB

Half-cut, 1/3-cut    ≥6000strips/hour







The speed depends on the solder   process. If the required   solder time is too long, it may affect the production speed.







Cell Cracks



161mm to 171mm cells:   Mono-Si ≤0.2%;

171mm to 230mm cells:   Mono-Si ≤0.25%;

Popular Grade A cell,   thickness

≥17m

Cell crack ratio = (cracked cells + micro-cracked cells)/total number   of soldered cells × 100%

Average Laser Power

50W/300W

Laser for grooving/laser for heating

Servic Life/Warranty of Laser



Warranty:   20,000 hours


Defect Detection

CCD




Overall Positioning Accuracy

Positioning deviation: ≤±0.05mm   Angular deviation: ≤±0.04°   Cutting accuracy: ≤±0.1mm




Groove Length



<1.5mm




Groove Depth



0-65% (adjustable)




Flux Coating Method



Soak of ribbon




Soldering Method



IR soldering






Temp Control Accuracy



±7.5

The upper/lower temp limits can be set on HMI; an alarm will be raised  when the temp is out of  the limit.


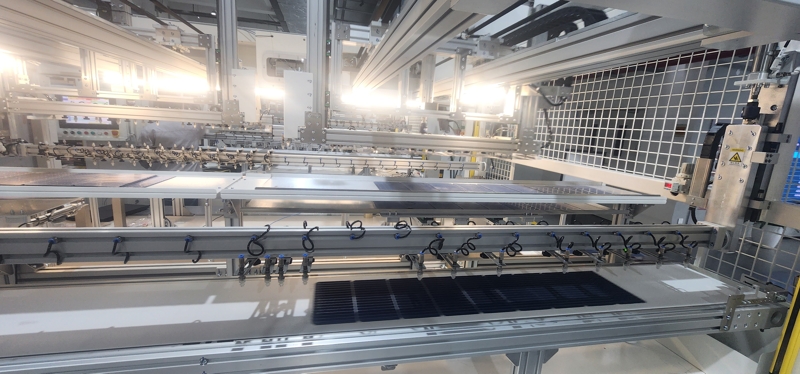

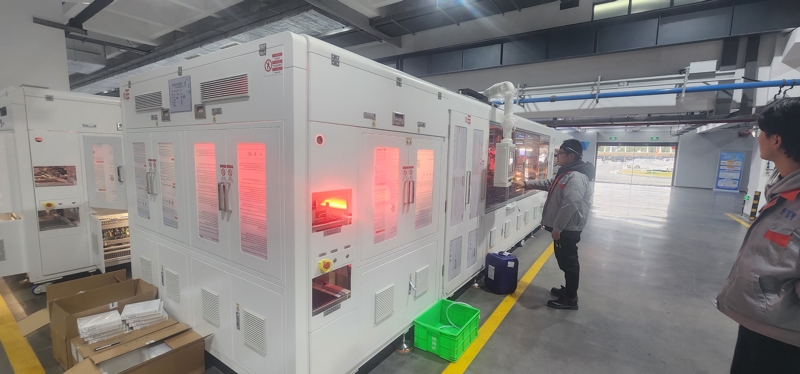

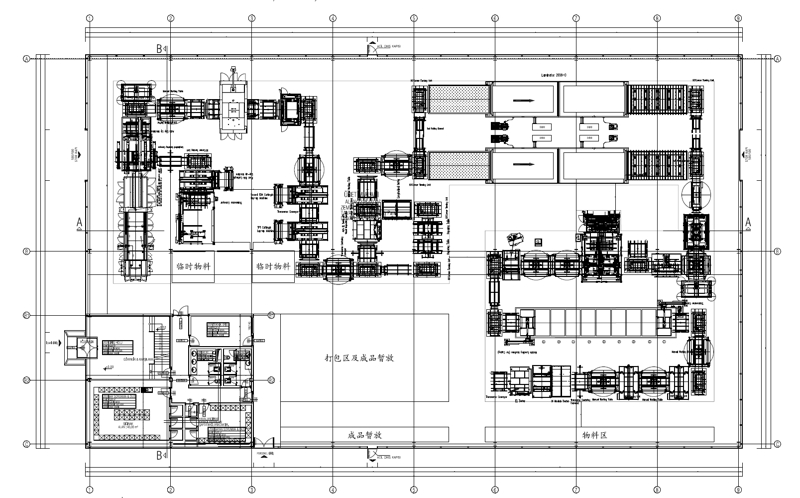

Detail picture

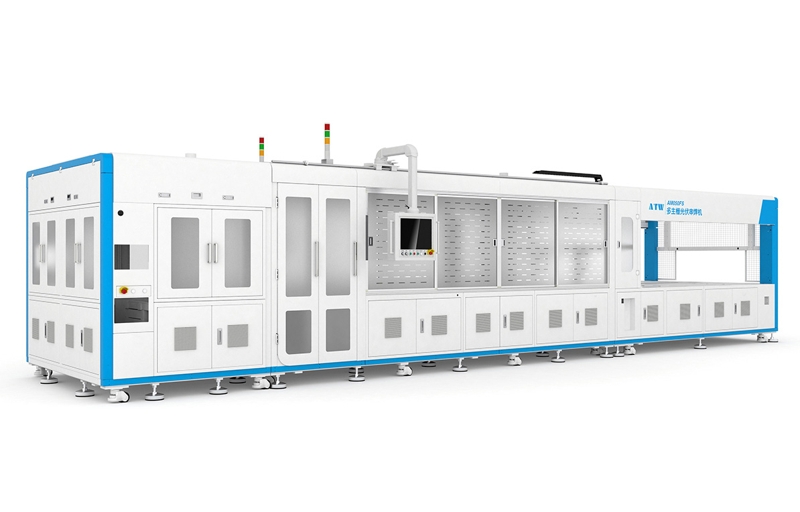

 Solar Cell Welding StringerSolar Cell Tabber Stringer
