• Full Automatic EL Defect Tester Solar Panel EL Defect Tester
  • Full Automatic EL Defect Tester Solar Panel EL Defect Tester

Full Automatic EL Defect Tester Solar Panel EL Defect Tester

EL Defect Tester is used to testing the solar cell crack,breakage, black spot,mixed wafers,process defect,cold solder joint phenomenon.

WhatsApp :

Inquiry Now!

Full Automatic EL Defect Tester Solar Panel EL Defect Tester

Machine Function

Used in testing the solar cell crackbreakage, black spotmixed wafersprocess defectcold solder joint phenomenon.

Technical Parameter

Item

OEL-S2400

Capture Mode

Single   Camera

Run Mode

Offline

Monitor Point

After   Laminating

Sample Stage

Super-white   Tempered Glass

Sample Size

≤2200mm*1200mm

Operation Height

950mm

Exposure Time

1   ~ 60s

Current/Voltage

10A/60V

Software

1.Interface   for barcode scanning, naming files with barcode names;
2.Defect classification, create image folder and save image files   automatically.

Detection Ability

crack,   black spot, mixed wafers, process defect, cold solder joint.

Configuration

Testing   host, computer, software

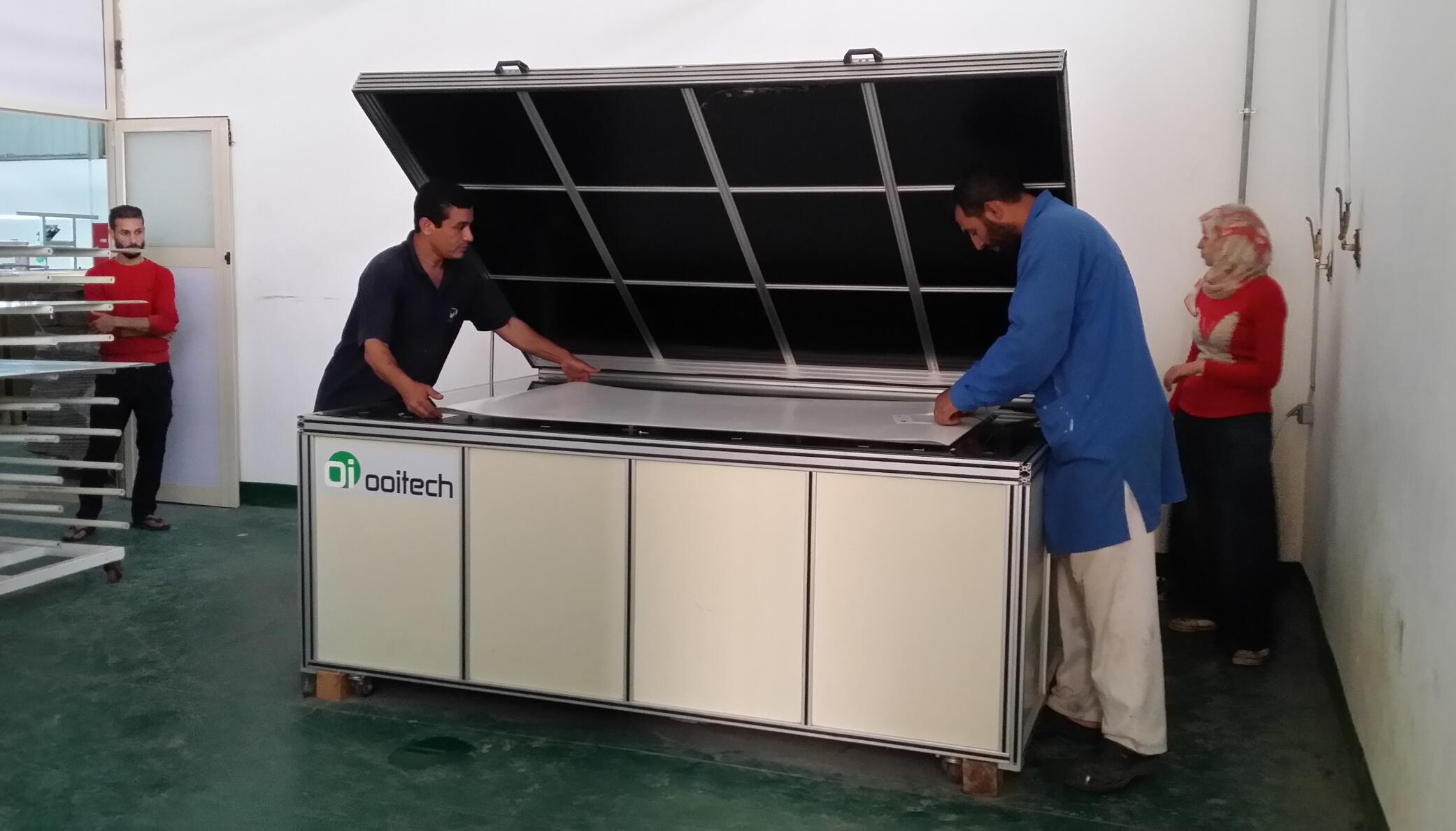

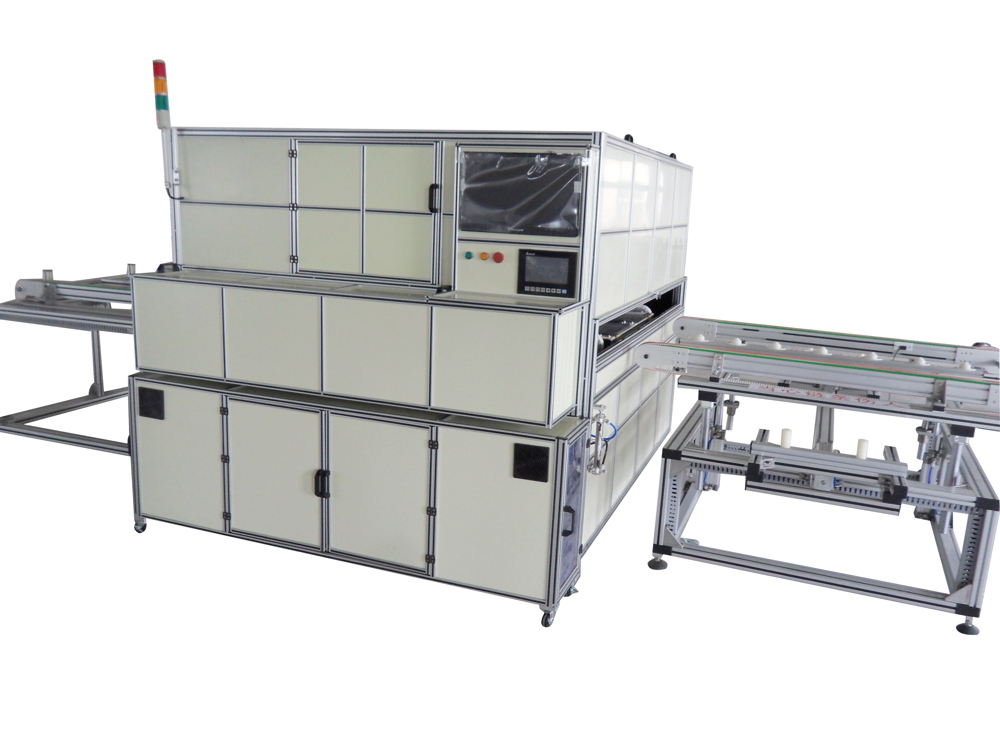

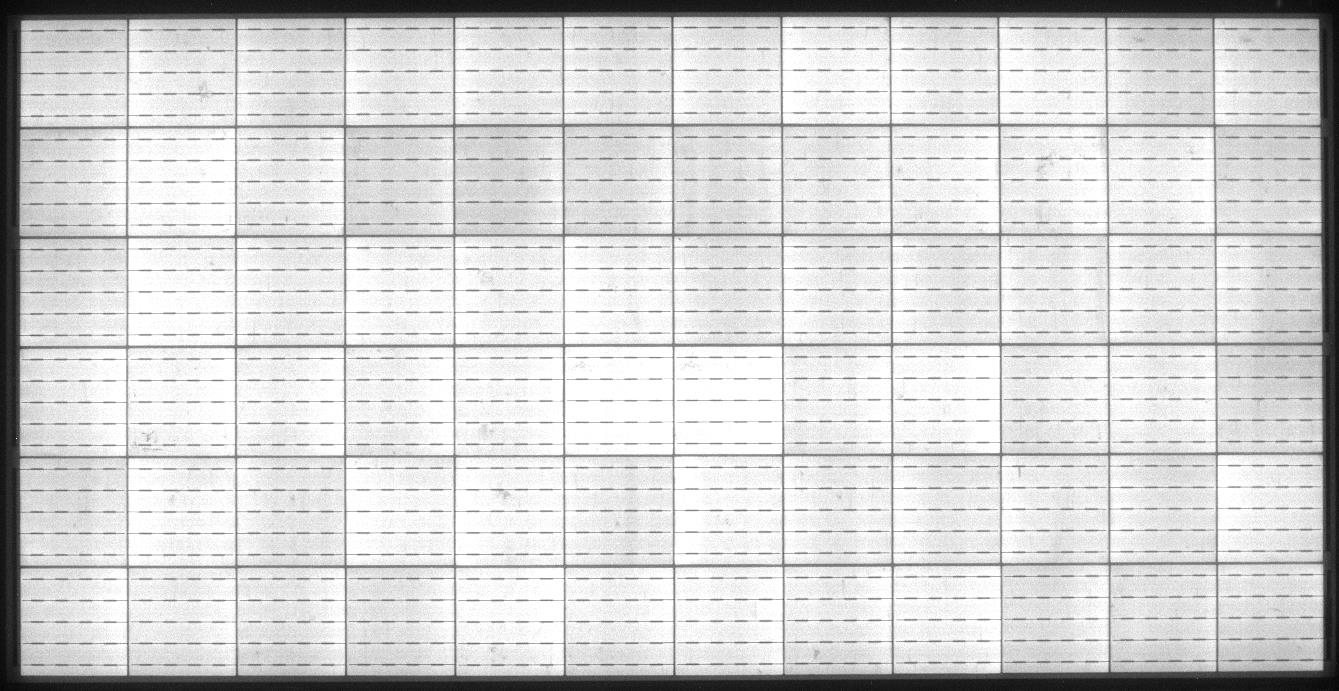

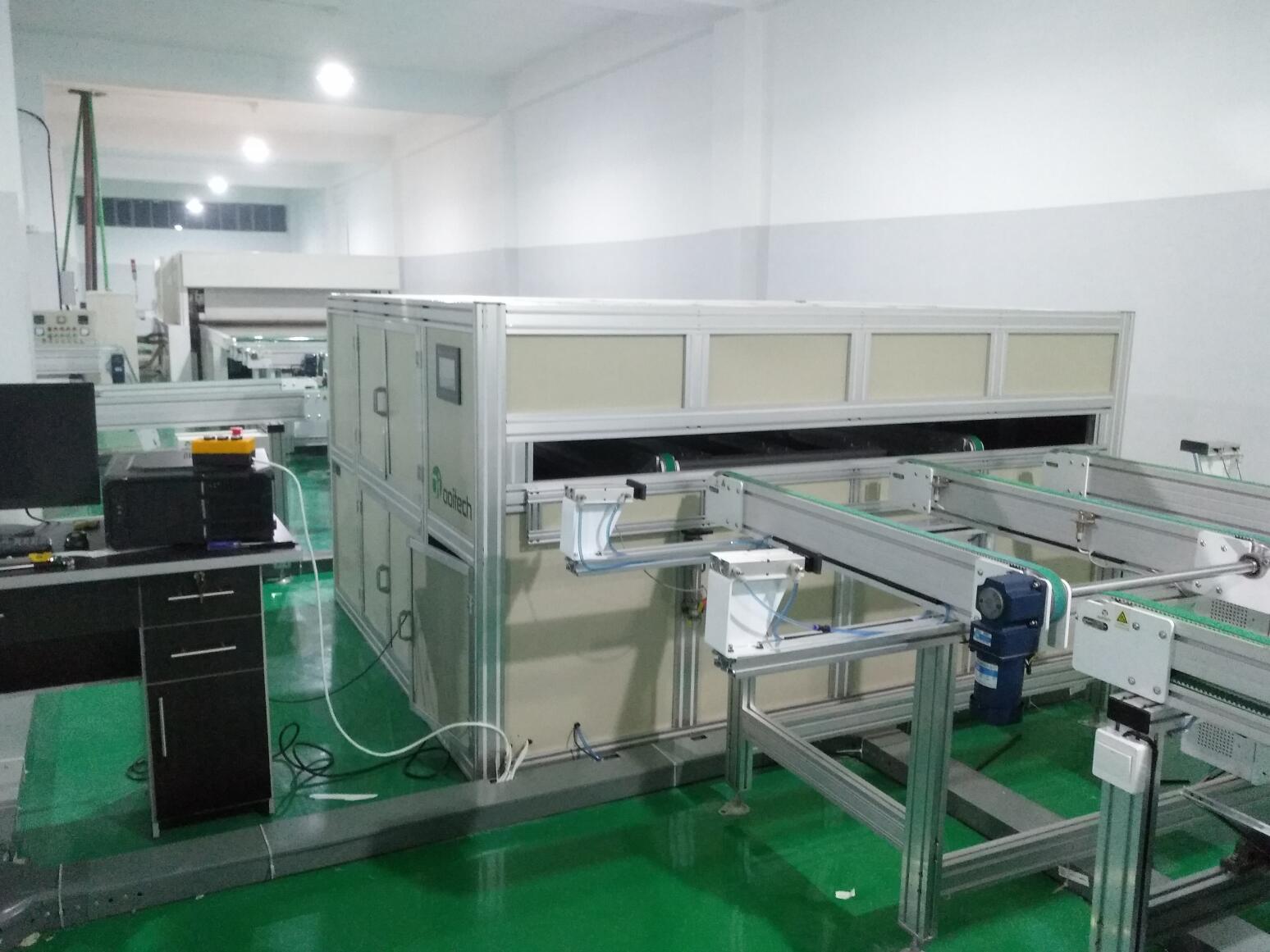

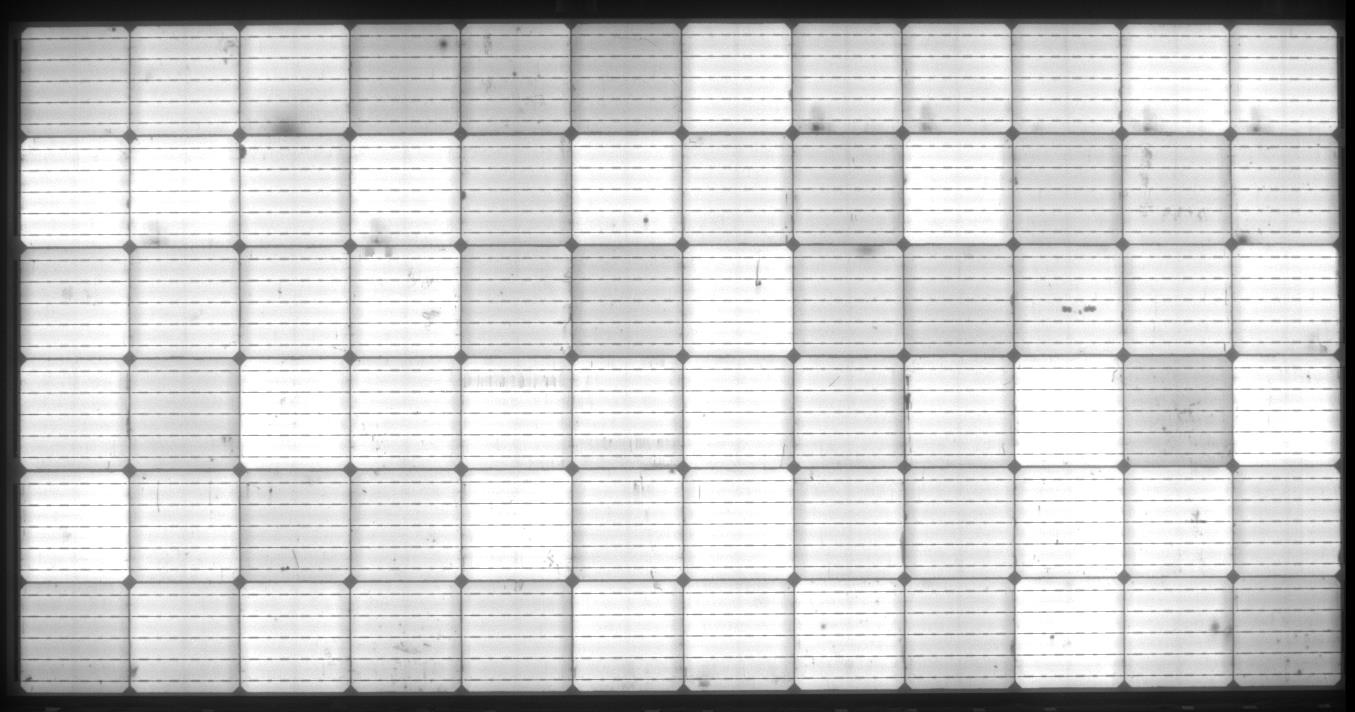

Detail picture

EL Defect Tester

Full Automatic EL Defect Tester, Solar Panel EL Defect Tester

Solar Panel EL Defect Tester

Solar EL TesterEL Tester


Ooitech, One-stop Solution For Solar Cell Production.

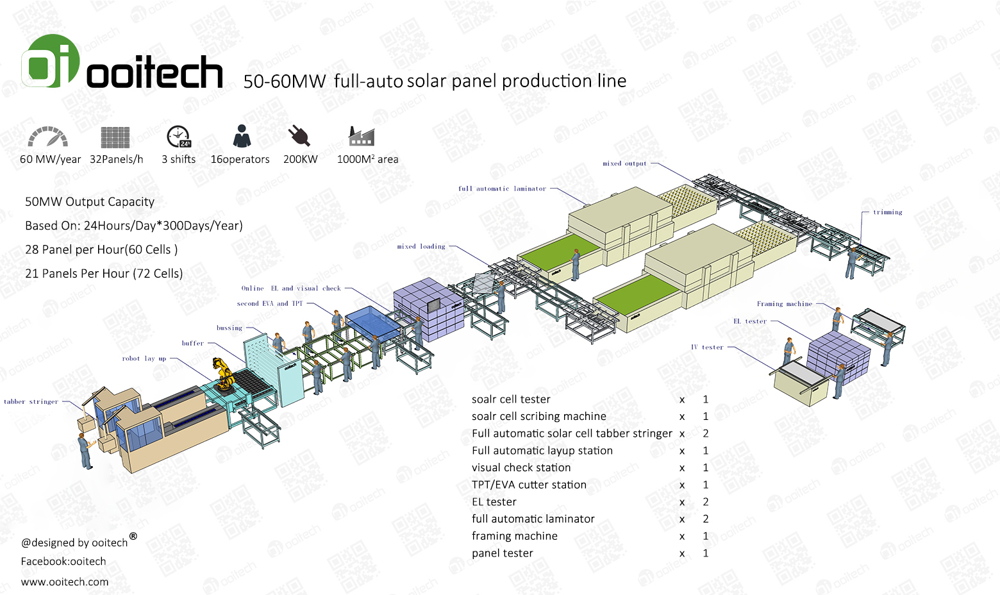

Solar Panel Production


Ooitech “Turnkey Solution” Includes: Factory Construction, Facility Layout, Raw Materials BOM guidance, Production Procedure assistance, Solar Power Station installation technical support Etc.

Ooitech focus on:

Supply 10MW-500MW Turnkey PV Production Line

Update the traditional PV line to the newest MBB solar panel production line.

Main machinery

Solar Cell Tabber Stringer Machine

Automatic Solder Bussing Machine

Automatic Laminator

High-Speed Automatic Layup Station

Automatic Framing Machine

Electroluminescence Test

Solar Simulator Or IV Tester

Solar Cell Laser Cutting Machine

Solar Ribbon Cutting Machine
